    LED T5

    6W 10W 15W 20W

    FEATURE
    – High eciency certication
    – The design of linkable structure
    – Circuit of surge protection is built in / over 2K
    – High CRI : over 80Ra
    – Various sizes and light colors

     USES
    House, Interior shop, Oce, Apartment, Packing Lot,
    Shop and all indoor areas

    Products Specification

    Description6W10W15W20W
    model no.FS-QS-T5-6W-6500K
    FS-QS-T5-6W-4000K
    FS-QS-T5-6W-2700K
    FS-QS-T5-10W-6500K
    FS-QS-T5-10W-4000K
    FS-QS-T5-10W-2700K
    FS-QS-T5-15W-6500K
    FS-QS-T5-15W-4000K
    FS-QS-T5-15W-2700K
    FS-QS-T5-20W-6500K
    FS-QS-T5-20W-4000K
    FS-QS-T5-20W-2700K
    Luminous Flux(lm)510lm
    480lm
    420lm
    850lm
    800lm
    700lm
    1275lm
    1200lm
    1050lm
    1700lm
    1600lm
    1400lm
    LUminous Efficiency(lm/w)85lm/W
    80lm/W
    70lm/W
    85lm/W
    80lm/W
    70lm/W
    85lm/W
    80lm/W
    70lm/W
    85lm/W
    80lm/W
    70lm/W

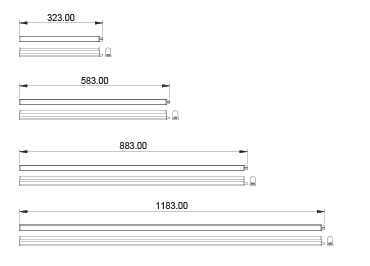

    Size323X23X34mm583X23X34mm883X23X34mm1,183X23X34mm
    Weight76g103g150g190g
    Related Voltage (V)220V / AC/ 60Hz220V / AC/ 60Hz220V / AC/ 60Hz220V / AC/ 60Hz
    Power Consumption6W10W15W20W
    CRI(Ra)80 Ra80 Ra80 Ra80 Ra
    Light Color(K)6,500 K
    4,000 K
    2,700 K
    6,500 K
    4,000 K
    2,700 K
    6,500 K
    4,000 K
    2,700 K
    6,500 K
    4,000 K
    2,700 K
    Beam Angle( ˚ )140˚140˚140˚140˚
    Lifespan30,000hr30,000hr30,000hr30,000hr
    Available Temperature(˚C)-20˚C~50˚C-20˚C~50˚C-20˚C~50˚C-20˚C~50˚C
