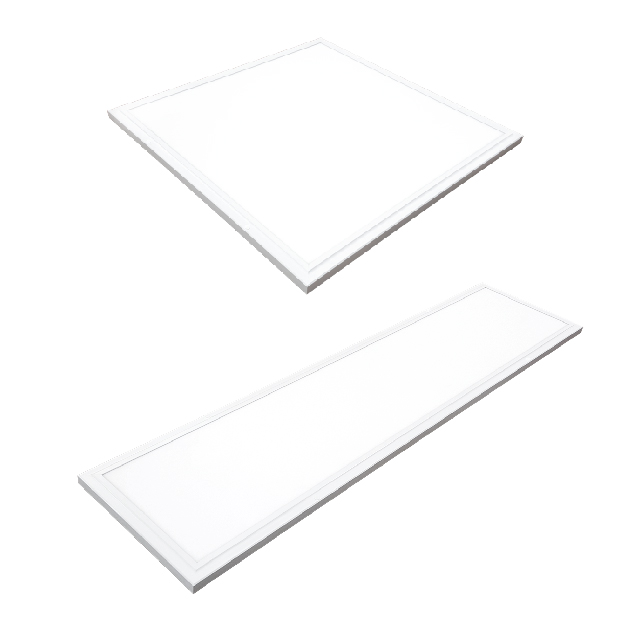

Surface Mount – 50W 40W
FEATURE
1. High e ciency is certi ed
2. 99.9% compatible with lighting source,
lighting fixture and SMPS
3. Keep brightness in lower temperature.
4. Long lifespan.
USES
House, Living Room, Office, Department, Shops,
Hospital and All over Places.
Drawing
Installations
Products Specification
| Description No. | 1285X317mm 40W | 635X635mm 40W | 1285X317mm 50W | 635X635mm 50W |
|---|---|---|---|---|
| Model No. | ZE-40A-E51B | ZE-40B-E51B | ZE-50A-E51B | ZE-50B-E51B |
| Luminous Flux(lm) | 4,400 lm | 4,400 lm | 5,500 lm | 5,500 lm |
| LUminous Efficiency(lm/w) | 110 lm/W | 110 lm/W | 110 lm/W | 110 lm/W |
| CRI(Ra) | 80Ra | 80Ra | 80Ra | 80Ra |
| Light Color(K) | 5,700K | 5,700K | 5,700K | 5,700K |
| Beam Angle( ˚ ) | 120˚ | 120˚ | 120˚ | 120˚ |
| Size | 1285X318X23 mm | 635X635X23 mm | 1285X318X23 mm | 635X635X23 mm |
| Weight | 3.8kg | 3.4 kg | 3.8kg | 3.4 kg |
| Power Consumption | 40W | 40W | 50W | 50W |
| Life Time | 50,000hr | 50,000hr | 50,000hr | 50,000hr |
| Available Temperature(˚C) | -20˚C~50˚C | -20˚C~50˚C | -20˚C~50˚C | -20˚C~50˚C |
