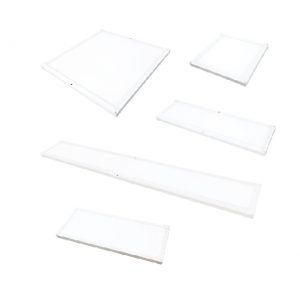

Surface Mount –
635×320mm 25W
1282X180mm 40W
540X540mm 40W
635X180mm 20W
320X320mm 20W
FEATURE
1. Surface mounted type
2. High e ciency certi cation
3. Easy installation
4. High technique LED lighting
USES
House, Living Room, Office, Department, Shops,
Hospital and All over Places.
Drawing
Installations
Products Specification
| Description No. | 635X320mm 25W | 1282X180mm 40W | 540X540mm 40W | 635X180mm 20W | 320X320mm 20W |
|---|---|---|---|---|---|
| Model No. | ZE-25C-E51 | ZE-40G-E51 | MZE-40F-E51 | MZE-20H-E51 | MZE-20E-E51 |
| Luminous Flux(lm) | 2,250 lm | 3,800 lm | 3,800 lm | 1,600 lm | 1,600 lm |
| LUminous Efficiency(lm/w) | 90 lm/W | 95 lm/W | 90 lm/W | 80 lm/W | 80 lm/W |
| CRI(Ra) | 80Ra | 80Ra | 80Ra | 80Ra | 80Ra |
| Light Color(K) | 5,700K | 5,700K | 5,700K | 5,700K | 5,700K |
| Beam Angle( ˚ ) | 120˚ | 120˚ | 120˚ | 120˚ | |
| Size | 1285X318X23 mm | 635X635X23 mm | 1285X318X23 mm | 635X635X23 mm | 320X320X23 mm |
| Weight | 1.9 Kg | 2.3 Kg | 3.1 Kg | 1.9 Kg | 1.9 Kg |
| Power Consumption | 25W | 40W | 40W | 20W | 20W |
| Life Time | 50,000hr | 50,000hr | 50,000hr | 50,000hr | 50,000hr |
| Available Temperature(˚C) | -20˚C~50˚C | -20˚C~50˚C | -20˚C~50˚C | -20˚C~50˚C | -20˚C~50˚C |
