Surface Mount – Wireless Dimming
FEATURE

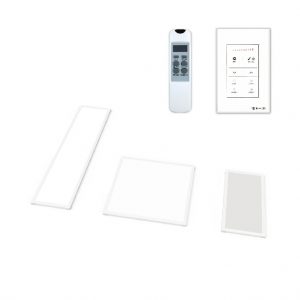

1. Available to choose control switch or Remote controller
2. Easy to install and convenience to use
3. Useful LED light in the house or o ce
3. Circuit of surge protection is built in / over 2K
USES
House, Living Room, Office, Department, Shops,
Hospital and All over Places.
Drawing

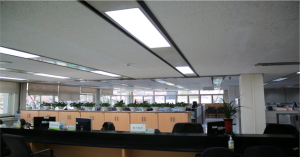

Installations
Surface Mount Wireless Dimming Specification
| Description No. | 1285X317mm 50W | 635X635mm 50W | 540X540mm 25W |
|---|---|---|---|
| Model No. | ZE-50A-1D51 | ZE-50B-1D51 | ZE-25C-1D51 |
| Luminous Flux(lm) | 4,750 lm | 4,750 lm | 2,250 lm |
| LUminous Efficiency(lm/w) | 95 lm/W | 95 lm/W | 95 lm/W |
| CRI(Ra) | 80Ra | 80Ra | 80Ra |
| Light Color(K) | 5,700K | 5,700K | 5,700K |
| Beam Angle( ˚ ) | 120˚ | 120˚ | 120˚ |
| Size | 1285X318X23 mm | 635X635X23 mm | 540X540X23 mm |
| Weight | 3.8kg | 3.4 kg | 1.9 kg |
| Power Consumption | 50W | 50W | 25W |
| Life Time | 50,000hr | 50,000hr | 50,000hr |
| Available Temperature(˚C) | -20˚C~50˚C | -20˚C~50˚C | -20˚C~50˚C |
