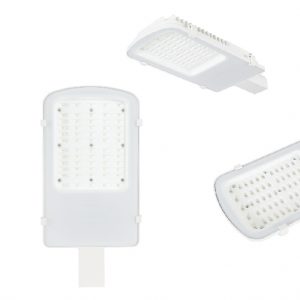

30W 60W 100W
FEATURE
1. IP 65 / 66(Option)
2. Tempered and high traslucent glass is used
3. LED light source, lighting fixture and SMPS
are assembled / Easy to exchange SMPS
4. Die-casting aluminum on backside
5. PC re ector is used for high e ects
6. Light weight / Easy to install
USES
Residential area, factory, sidewalks, streets and roads

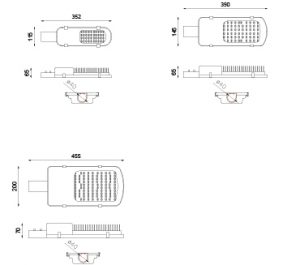

Detail

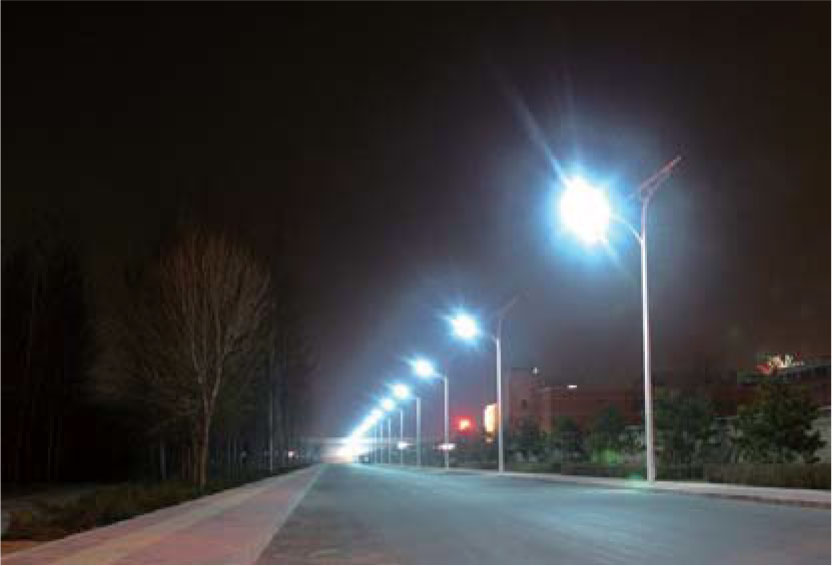

Installations
Products Specification
| Description No. | 30W | 60W | 100W |
|---|---|---|---|
| Model No. | ZQS2-30B-N01 | ZQS2-60B-N01 | ZQS2-A0B-N01 |
| Luminous Flux(lm) | 3,600 lm | 7,200 lm | 12,000 lm |
| LUminous Efficiency(lm/w) | 120 lm/W | 120 lm/W | 120 lm/W |
| CRI(Ra) | 80 Ra | 80 Ra | 80 Ra |
| Light Color(K) | 5,700K | 5,700K | 5,700K |
| Size | 352X115X65 | 352X115X65 | 352X115X65 |
| Weight | 0.83 kg | 1.26 kg | 2.37 kg |
| Power Consumption | 30W | 60W | 100W |
| Life Time | 40,000hr | 40,000hr | 40,000hr |
| Available Temperature(˚C) | -30˚C~60˚C | -30˚C~60˚C | -30˚C~60˚C |
| Beam Angle | 70°/120° | 70°/120° | 70°/120° |
| IP | 65/66(option) | 65/66(option) | 65/66(option) |
