20W 25W
FEATURE
1. High eciency is certied
2. LED light source, aluminum lighting xture
and SMPS are assembled
3. Circuit of surge protection is built in / over 2K
USES
Public area, commercial area and shop, restroom,
hall way and all indoor areas

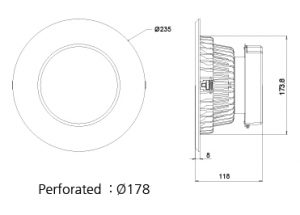

Drawing
Products Specification
| Description No. | 7″ / 20W / 5,700K | 7″ / 25W / 5,700K |
|---|---|---|
| Model No. | ZD-207-E01 | ZD-257-E01 |
| Total Luminous Flux (lm) | 2,100 lm | 2,625 lm |
| CRI(Ra) | 80Ra | 80Ra |
| Luminous Efficiency (lm/W) | 105 lm/W | 105 lm/W |
| Size | Ø235X118 | Ø235X118 |
| Weight (g) | 780 g | 780 g |
| Power Consumption | 20W | 25W |
| Color Temperature (K) | 5,700K | 5,700K |
| Lifespan | 30,000hr | 30,000hr |
| Available Temperature(˚C) | -20˚C~50˚C | -20˚C~50˚C |
